Backward Lamina Bladed Fans

Backward bladed fans are the workhorses of industrial fans, suitable for a wide range of applications. They offer high peak efficiency, a non-overloading power characteristic, and can handle light dust loads effectively.

We manufacture a standard range of diameters from 250 mm to 2130 mm, in four standard widths: BL100, BL70, BL50, and NP/BC. This versatile range allows us to deliver air volumes of up to 170,000 m³/hr (100,000 cfm) and static pressures up to 7,500 pa (30” swg).


Key Benefits

  • High efficiency performance
  • Capable of handling light dust loads
  • Available in a wide range of fan arrangements
  • Constructed from mild steel or stainless steel
  • Suitable for temperatures up to 500°C
  • Wide selection of anti-corrosive finishes available

Fan Arrangements

  • Arrangement 1: bare shaft
  • Arrangement 3H: direct drive - pedestal mounted
  • Arrangement 3V: direct drive - inlet flange mounted

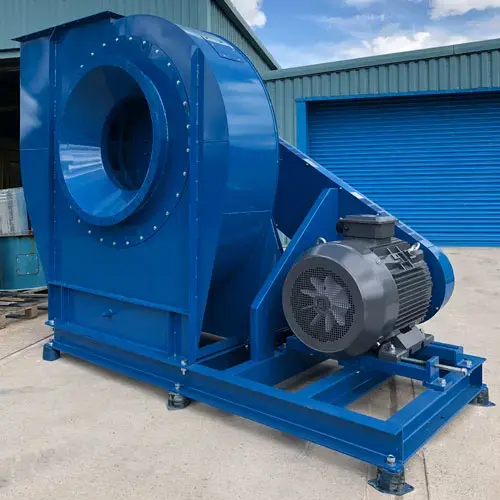

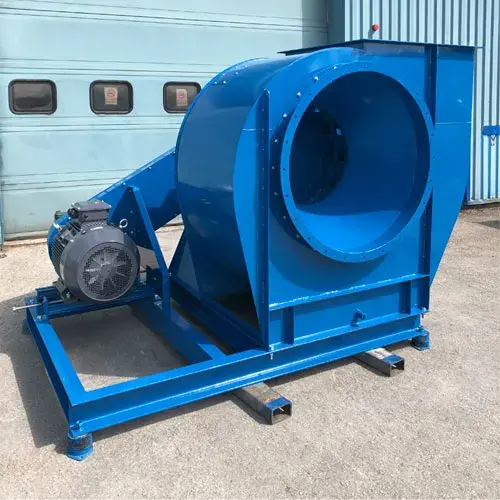

  • Arrangement 4: belt driven - fan & motor on common baseframe

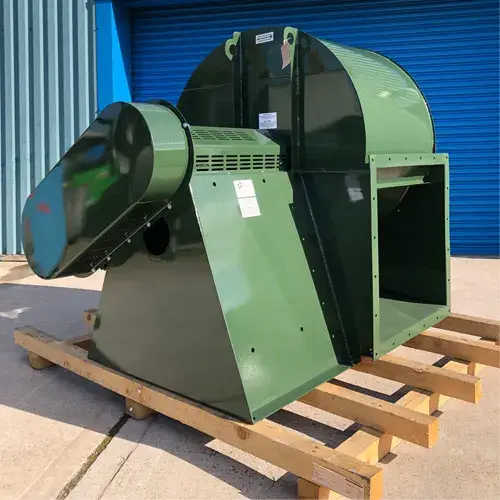

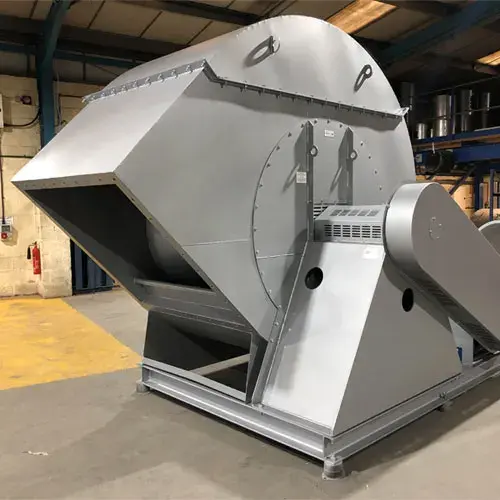

  • Arrangement 9: belt driven - motor mounted on fan pedestal
  • Plug mounted
  • DIDW (double inlet double width) fan sets
